L High Flow
L High Flow
Specifications

Sampling pressure: 0-125 psi (0 - 0.86 MPa)

Working pressure: 0 - 3,000 psi (0 - 20.7 MPa)

Burst Pressure: 10000 psi (68.9 MPa)

Seal Material: Viton (FKM), Neoprene

Valve Material: Carbon steel, stainless steel

Valve Plating: Zinc Nickel



View detailed specification chart.



Application
Features
  • High flow design for sampling high viscosityoils at low pressures
  • O-ring sealedto withstand 27 in Hg (0.9 bar) system working pressure
  • Easy to clean flat face design
  • Extra compact and sealed cap
Probes

SLF4: Sample Probe with Barb for 1/4"OD Tube (SER4)

LF-4NF: Sample Probe 1/4" Poly barb (SER4)

LF-Q4: Quick connect for 1/4" OD Tube (SER4)

SLF5: Sample Probe with Barb for 5/16"OD Tube (SNR5/SER5)

LF-Q5: Quick Connect for 5/16" OD Tube (SER5)

LF-Q8: Quick Connect for 1/2" OD Tube (SER8)

Accessories

VAC:  Vacuum Pump 38 mm, w/ Dustcover & Zipbag & Stand

Links

L Series High Flow Brochure.pdf

Sampling Instructions: L Series High Flow

Video: LT Series Tube Extend Sampling



Why Use Oil Sampling Valves?

Thread Identification Chart

Sealing Identification Chart

Elastomeric Seals Chart
Fluid Compatibility Chart

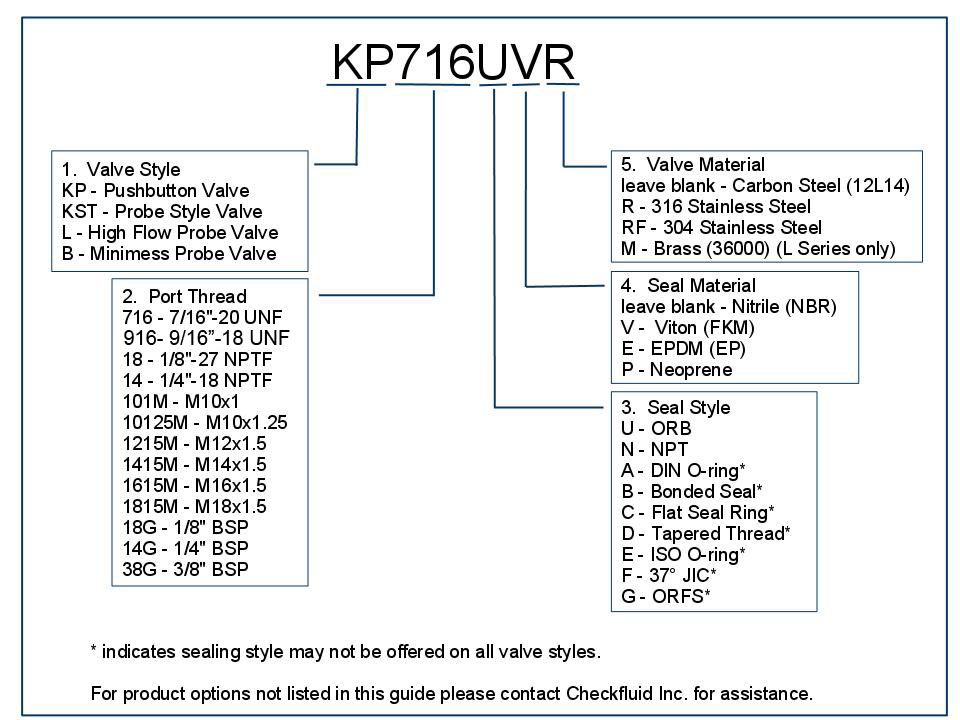

Product Numbering Guide

Convert To and From Dash Sizes



Overview
Quick Search

American National Pipe Thread
British Standard Taper Pipe
Accessories/Probes
SAE Straight Thread O-Ring Boss
