Oil Sight Glass (Bottom Sediment & Water Glass)
Oil Sight Glass (Bottom Sediment & Water Glass)
Features

- Oil visibility: the view is crystal clear and now you can inspect your oil from the top of the sight glass
- Extremely durable: the inherently strong polyamide material will withstand the toughest environments
- UV Resistant: excellent weathering allowing it to withstand exposure to sun, rain and other extreme conditions
- Indication Marks: visually inspect and monitor rate of accumulation of water in the oil sight glass
- Sediment Drainage: a sloped floor for better evacuation and resetting of the oil sight glass

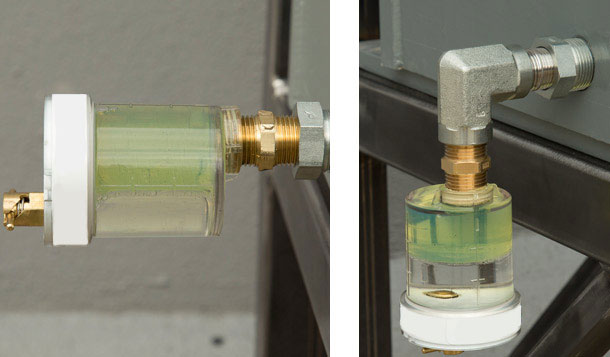

- Dual-Mount Versatility: the sight glass can be installed horizontally or vertically

Specifications

Material: Transparent polyamide, brass hex nipple, brass drain valve
Chemical Compatibility: Polyamide is compatible with all gear and mineral oils, most synthetic oils, and diesel fuel
Max. Operating Pressure: 65 psi (.44 MPa)
Recommended Temperature Range: -40°F to 200°F (-40°C to 93°C)

Applications
Overview
Order
Oil Sight Glass
