At a Distance (Hose - Gearboxes)
At a Distance (Hose - Gearboxes)
Features
  • Tube allows easy sampling of active oil
  • Used with HB5 reinforced hose and any Checkfluid series sampling valve for remote access installations
  • Allows safe and convenient access to the sampling port
Specifications

Sampling Pressure: 0 - 125 psi (0 - 8.6 bar)

Max. Working Pressure: 500 psi (34 bar)

Sealing Materials: Viton (FKM), Nitrile (Buna N)

Detailed Specifications Chart (PDF)

Probes

SLF4: Sample Probe with Barb for 1/4"OD Tube (SER4)

SLF5: Sample Probe with Barb for 5/16"OD Tube (SNR5/SER5)

LF-4NF: Sample Probe 1/4" Poly barb (SER4)

LF-Q4: Quick connect for 1/4" OD Tube (SER4)

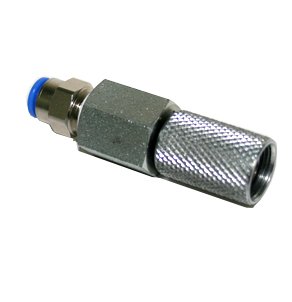

LF-Q5: Quick Connect for 5/16" OD Tube (SER5)

Additional Links

Thread Identification Chart

Convert to and from Dash Sizes

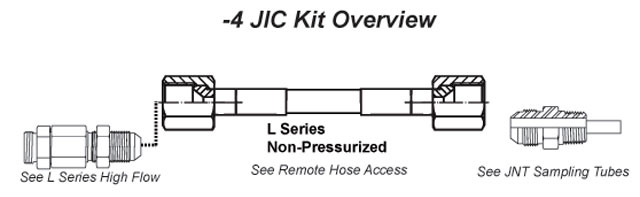

Overview
Quick Search

Quick Search

Order
NPTF - 1/4" OD - Stainless - Rigid
NPTF - 1/4" OD - Steel, Stainless Tube - Rigid
NPTF - 1/4" OD - Steel, Stainless Tube - Swivel
NPTF - 5/16" OD - Steel, Stainless Tube - Rigid
