Hydraulic Hose & Ends

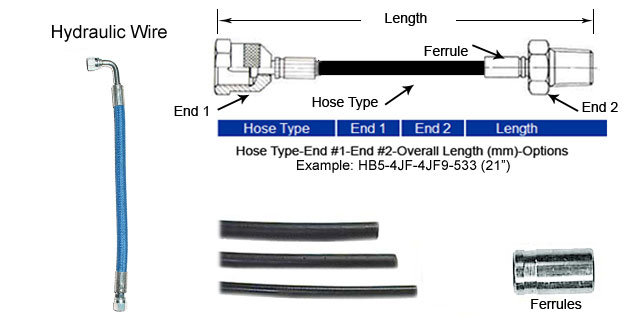

Hydraulic Hose & Ends
Features
  • 3/16" inside diameter reduces purge volume by 44% (vs 1/4" inside diameter)
  • Check pressures and oil sample away from machine and moving parts
  • Ideal for pressurized, low flow applications
  • Excellent flexibility, even under pressure
  • Ruggeed wire reinforced
  • Resistant to most mineral and synthetic oils in wide temperature range (-55°F to 300°F, -49°C to 148°C)
  • Resists weather fatigue and light
  • Easy to attach to a bracket or frame
Specifications

Sampling Pressure: 0 - 1500 psi (0 - 10 Mpa)**

Max. Working Pressure: 1500 psi (10 Mpa)

Burst Pressure: 6000 psi (40 Mpa)

** Sampling and max. working pressures depends on the sampling valve pressure ratings

Options

Hoses vary in length and can be customized to suit your needs. Please contact us regarding your exact specifications.
