B Series
B Series
Features

- Popular industrial Euro-Probe sampling valve style with metric 16x2 probe thread

- Metal ball and seat valve allows pressure testing to 5800 psi (400 bar), not suitable for air, gas or vacuum
- Hand sampling to 750 psi (51.7 bar) and dynamic sampling to 5800 psi (400 bar)



Specifications

Sampling pressure: 0-5800 psi (0 - 40 MPa)

Working pressure: 5800 psi (40 MPa)

Seal Material: Nitrile (Buna N), Viton (FKM)

Valve Material: Carbon steel/Stainless Steel 316

Valve Plating: Zinc Nickel

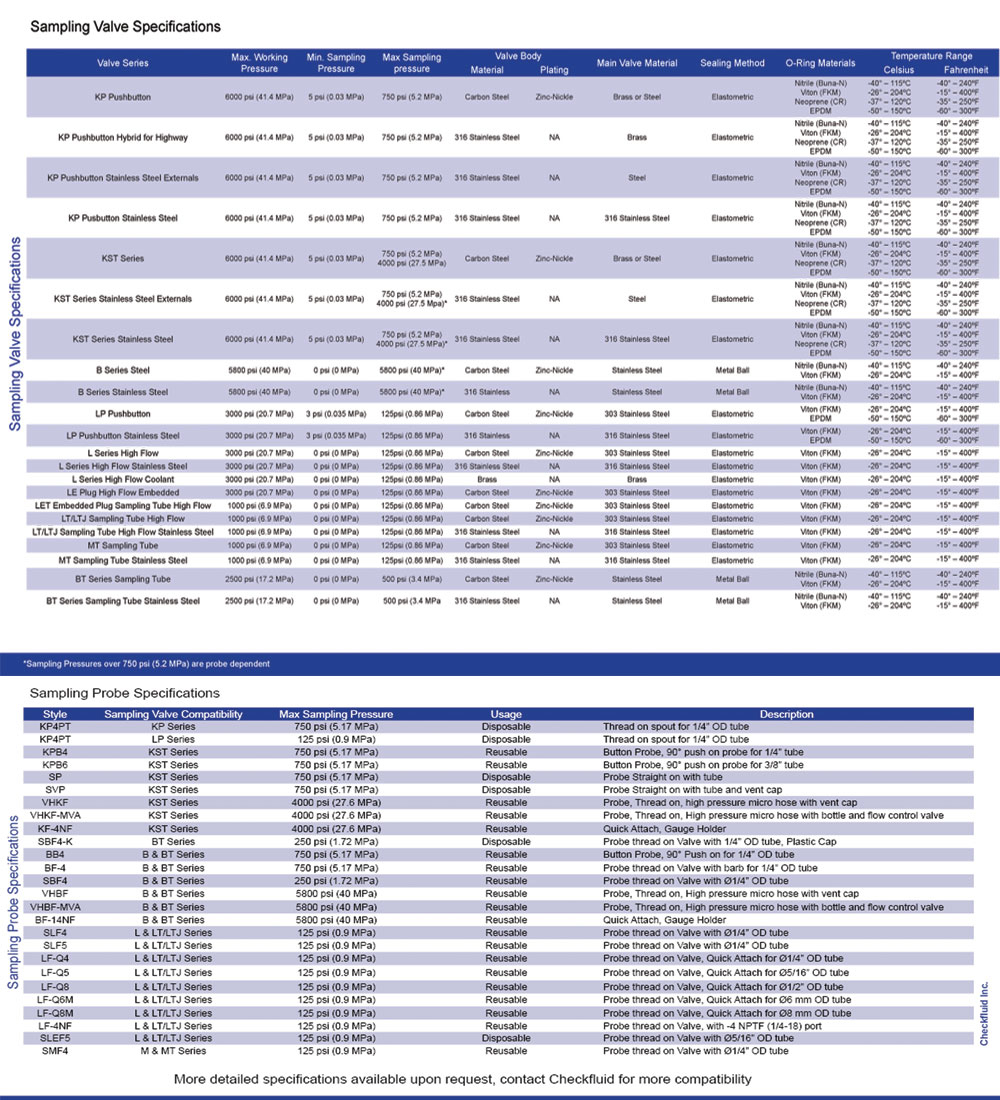

Detailed Specification Chart (PDF)

Options

Non corrosive nylon cap available.

Contact Checkfluid for details.

Probes

BF-14NF: Gauge holder with female 1/4"NPTF, Reusable

BB4: 90 Deg probe, push on, Reusable

VHBF: High pressure micro hose thread on, Vent, Reusable

VHBF-MVA: High Pressure Sampling Metering Valve Assembly

Product Support PDFS

Sampling Instructions: B Series (PDF)

B Series Product Sheet (PDF)

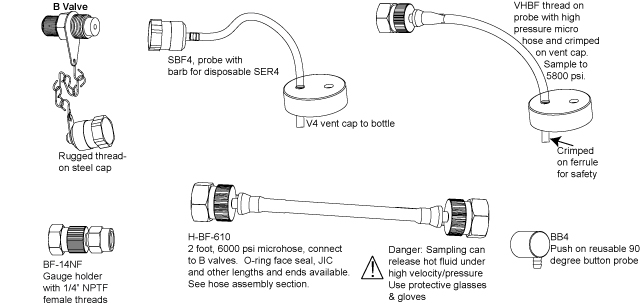

Overview
Order
American National Pipe Thread - NPTF - Steel
American National Pipe Thread - NPTF - Stainless
SAE Straight Thread O-Ring Boss - ORB - Steel
Metric - ISO 6149 - Steel
British Standard Pipe Parallel - BSPP - Steel
British Standard Pipe Taper - BSPT - Steel
British Standard Pipe Taper - BSPT - Stainless
JIC Flare 37 - Steel - Female
Accessories/Probes
