Hose ends vary in diameter from 2mm-4mm and can be customized to suit your needs

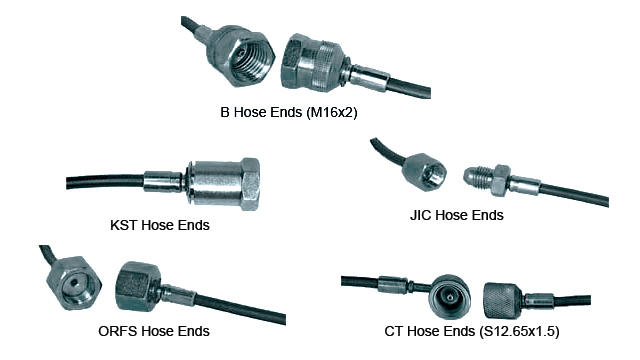

B Hose Ends (M16x2)
For M16x2 connections to B Series sampling/diagnostic valve. Thread to connect dynamically up to 9000psi.

JIC Hose Ends
For JIC flare connections according to SAE J514 and ISO 8434. Female swivel end.

ORFS Hose Ends (O-Ring Face Seal)
For ORFS connections according to SAE J1453

Offers excellent leakage and vibration protection, female swivel end.

CT Hose Ends (S12.65x1.5)
EZ Hose approved by NAAMS and the French Automotive industry, o-ring connection to connect to CT adapters.

NPTF Hose Ends (National Pipe Thread Fine)
Metal to metal seal and deformation of threads

Hose ends are rigid and do not swivel 1/4" female

NPTF popular gauge connections

Banjo Hose Ends
Connection for compact locations

Tube Hose Ends
For standpipe connections with nut and ring according to DIN 2353 and ISO 8434.

Other Hose Ends
Ask about our other hose end options including ORB port threads, swivel ends, quick attach, bsp, cone style and metric. Unique and custom solutions for automotive, high pressure gas and hydraulic applications.
