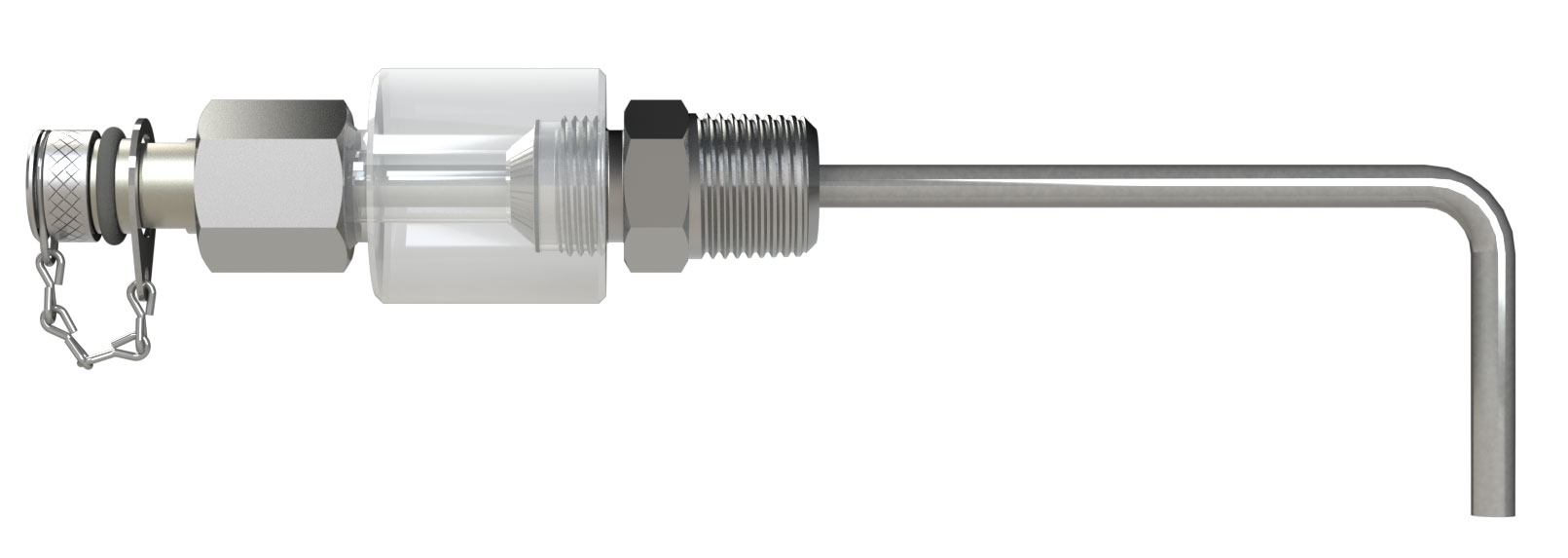

LTJ Sight
LTJ Sight
Features
  • High flow flushface valve is designed to be able to sample high viscosity gear oils up to VG 1500
  • Sampling tube draws only from the active zone
  • JIC style offers one less connection port
  • 3D Sight Glass offers visual inspection for oil level and coloration
  • Swivel feature allows for bending and positioning of the tube to draw from the active zone
Specifications

Sampling Pressure: 0 - 65 psi (0 - 0.45 MPa)

Working Pressure: 65 psi (0.45 MPa)

Temperature Range: -40°C to 95°C (-40°F to 203°F)

Seal Material: Viton (FKM)

Valve Material: Carbon Steel, Stainless Steel

Valve Plating: Zinc Nickel

Sight Glass Material: Acrylic

Applications
Product Support PDFS

LTJ Sight Product Cut Sheet

LTJ Sight Product Infographic

LTJ Installation Guide

Overview
Order
American National Pipe Thread - NPTF
British Standard Pipe Taper - BSPP
Metric - Form B
