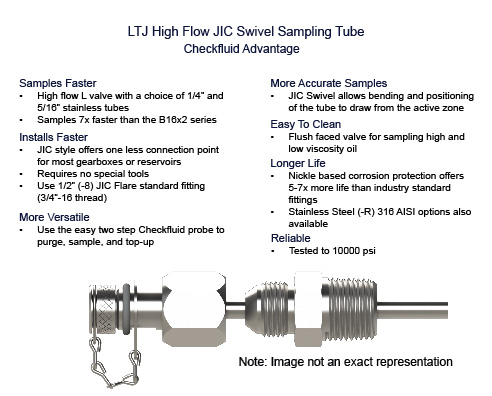

Home » Sampling Tubes (Pilot Tubes) » LTJ Sampling Tube
- Draw only the active oil in gearboxes and reservoirs for quick and accurate analysis- Sample VG 32 to VG 1500 gear oils without shutting down saving up to 90% of the time spent sampling- Samples up to seven times faster than B 16 x 2 series- Installs compactly into almost any port without special tools or multiple adapters- Choose to remote mount the valve for added safety or convenience- Rely on new corrosion resistant nickel plating to last up to five times more than industry standards- Top up fluids or replace sampled fluid cleanly and quickly using new probe options- Universal JIC flare port
Sampling Pressure: 0 psi - 125 psi (0 - 0.86 MPa)
Working pressure: 1000 psi (6.89 MPa)
Burst Pressure: 10 000 psi (68.9 MPa)
Seal Material: Viton (FKM)
Valve Material: Carbon steel, stainless steel
Valve Plating: Zinc Nickel
Detailed Specification Chart (PDF)
Tube Lengths of LTJ Valves (PDF)
LTJ Sight Product Sheet / Image
- High/low viscosity
- Extra high viscosity
- Top ups & adding fluid
- Top ups - 1/4" NPT hose (optional)
- 90 deg sampling barb (optional)
- Pressure Gage (optional)
VAC (38mm vacuum pump)
For more accessories go to Sampling Accessories
LTJ Product Sheet (PDF)
LTJ Sampling Tube Frequently Asked Questions (PDF)
LTJ Sampling Tube Installation Guide (PDF)
LTJ Sampling Instructions (PDF)
LTJ Sampling Tube Options (YouTube)
