AC Mount
AC Mount
Features

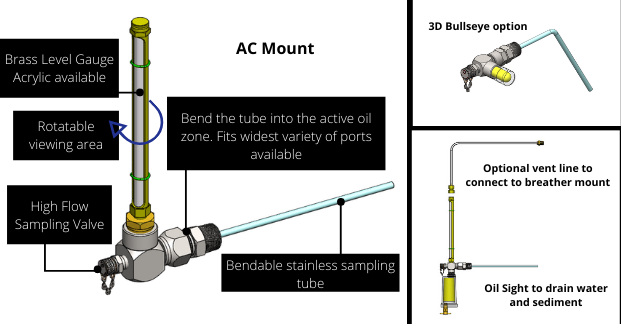

- Advantages/Features: Combine level checking, cleaning and fluid sampling

- Install the AC Series at a mid-level or drain port on compact gearboxes or reservoirs to combine checking the level and sampling functions

- The LT stainless sampling tube can be bent to extend down into the fluid

- For smaller sumps the L valve with a top up pump can also be used to replace the fluid sampled

- Fully adjustable to insure vertical positioning of level gauges after installation, cleaning or horizontal positioning for bullseye levels after air bleeding

- Use to mount small desiccant breathers in compact multi-positional gearboxes

Specifications

Sampling range 0 - 125 psi (0 - 0.86 MPa)

The AC comes with a 3/16" OD sampling tube



Please refer to LT Sampling Tube on the Detailed Specifications Chart

Options

Level Options:

Acrylic Level Gauge

- Acrylic vertical levels provide 360° view

- Available in 3”, 6”, 9” and 12” length



Brass/Glass Level Gauge [Pictured]

- Glass level provides 120° viewing

- Available in 3”, 6”, 9” and 12” lengths



Please see product page for detailed specifications



Bullseye Level

- Application specific

- Check with Checkfluid



Please see product page for detailed specifications



Bottom Sediment and Sight Glass

- Visually inspect and monitor rate of accumulation of water in the oil sight glass

- Sediment Drainage: a sloped floor for better evacuation and resetting of the oil sight glass



Please see product page for detailed specifications

Product Support PDFS

AC Sampling Instructions (PDF)
