KP Pushbutton (Pressurized)
KP Pushbutton (Pressurized)

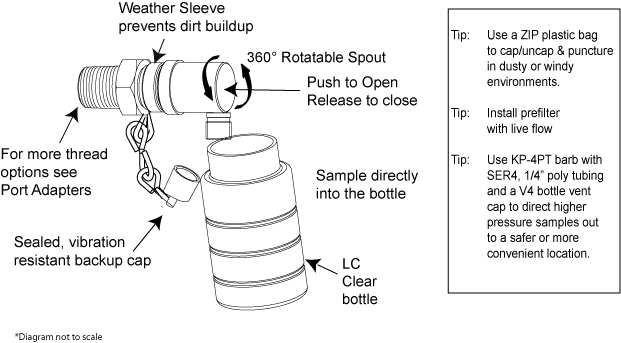

Features

- Easy push to open - release to close action.

- Cost effective - no probes needed

- Unique 360° rotating spout offers convenient sampling and installation without swivel fittings

- Corrosion resistant stainless steel chain and clip with no exposed springs

- Rugged spout design with easy to grip knurled cap

- Zinc-nickel plating offers over 5 times the industry standard corrosion protection

- Reliable: Dual sealed design independently tested at 7800 psi for one million cycles

- Patented elastomeric valve seals vacuum tight at 27 in Hg

Specifications

Sampling pressure: 5-750 psi (0.03 - 5.17 MPa)

Working pressure: 6000 psi (41.4 MPa)

Burst Pressure: 24000 psi (165.5 MPa)

Seal Material: Nitrile (Buna N), Viton (FKM), Neoprene (CR)

Valve Material: Carbon steel/Brass/Stainless Steel 316

Valve Plating: Zinc Nickel



Please refer to the KP on the Detailed Specification Chart (PDF) for more information

Options

- Locknut Option - required for protection against extreme vibration

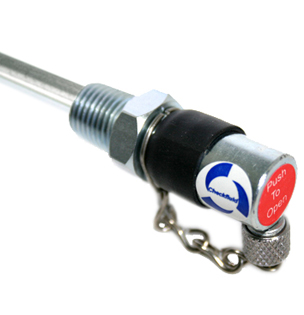

- Tube Option (stainless): "-T" (eg. KP14NVTR12) for pressurized sampling of air oil compartments on compressors

- For Ammonia & Refrigerant Compressors please select #KPQ14NP as it has been specifically designed for ammonia sampling

- For Engine kist please see Remote Access Engine Kits

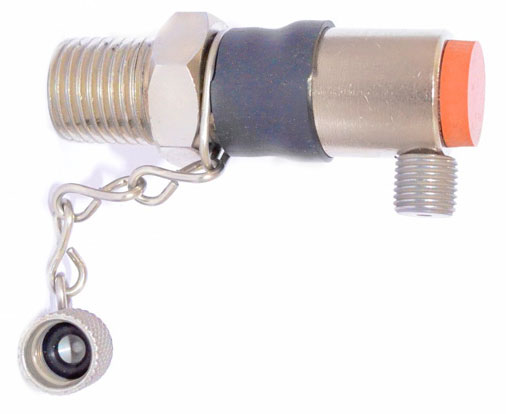

KPC-1: Silicone Protective Button Pad provides added protection for sampling in hot temperatures

Probes

KP4PT: Push Button Spout Barb

Product Support PDFS

KP Pushbutton Product Sheet (PDF)

KP Sampling Instructions (PDF)

Ammonia & Refrigerant Compressor Sampling

Videos

KP Pushbutton Sampling (YouTube)

KP Pushbutton Sampling with Zip Bag (YouTube)

Overview
Order
American National Pipe Thread - NPTF - Male - Steel
American National Pipe Thread - NPTF - Male - Stainless
SAE Straight Thread O-Ring Boss - ORB - Male - Steel
SAE Straight Thread O-Ring Boss - ORB - Male - Stainless
O-Ring Face Seal - ORFS - Male - Steel
Metric - ISO 6149 - Male - Steel
Metric - DIN - Male - Steel
British Standard Pipe Parallel - BSPP - Male - Steel
British Standard Pipe Taper - BSPT - Male - Steel
JIC Flare 37 Bulkhead - Female - Steel
Accessories/Probes
