To a Flange
To a Flange
Features

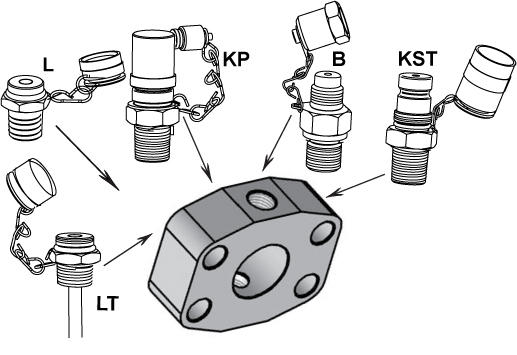

  • Use a spacer flange to add a sampling valve to the inlet or outlet of a SAE Code 61 or 62 series flange
Specifications

Sampling Pressure: 5 - 750 psi (0.4 - 51.7 bar)

Max. Working Pressure: 6000 psi (414 bar)

Sealing Materials: Nitrile (Buna N) standard, Viton (FKM) standard

Corrosion Protection: Trivalent Zinc Plating

Sideport (Standard) -4 SAE ORB (7/16-20)

Sideport (Option)    -4 NPTF (1/4-18)

Product Support PDFS

Spacer Flange Brochure

Overview
Order

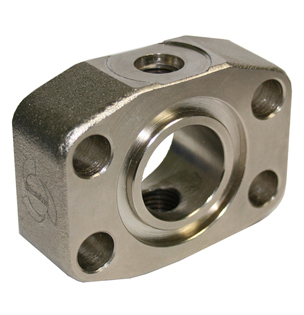

Spacer Flanges
