LT High Flow 1/4" Tube
LT High Flow 1/4" Tube
Features

- Draw only the active oil in gearboxes and reservoirs for quick and accurate analysis
- Sample VG 32 to VG 1500 gear oils without shutting down saving up to 90% of the time spent sampling
- Samples up to seven times faster than B 16 x 2 series
- Installs compactly into almost any port without special tools or multiple adapters
- Choose to remote mount the valve for added safety or convenience
- Rely on new corrosion resistant nickel plating to last up to five times more than industry standards
- Top up fluids or replace sampled fluid cleanly and quickly using new probe options

Specifications

Sampling Pressure: 0 psi - 125 psi (0 - 0.86 MPa)

Working pressure: 1000 psi (6.89 MPa)

Burst Pressure: 10 000 psi (68.9 MPa)

Seal Material: Viton (FKM)

Valve Material: Carbon steel, stainless steel

Valve Plating: Zinc Nickel

Detailed Specification Chart (PDF)

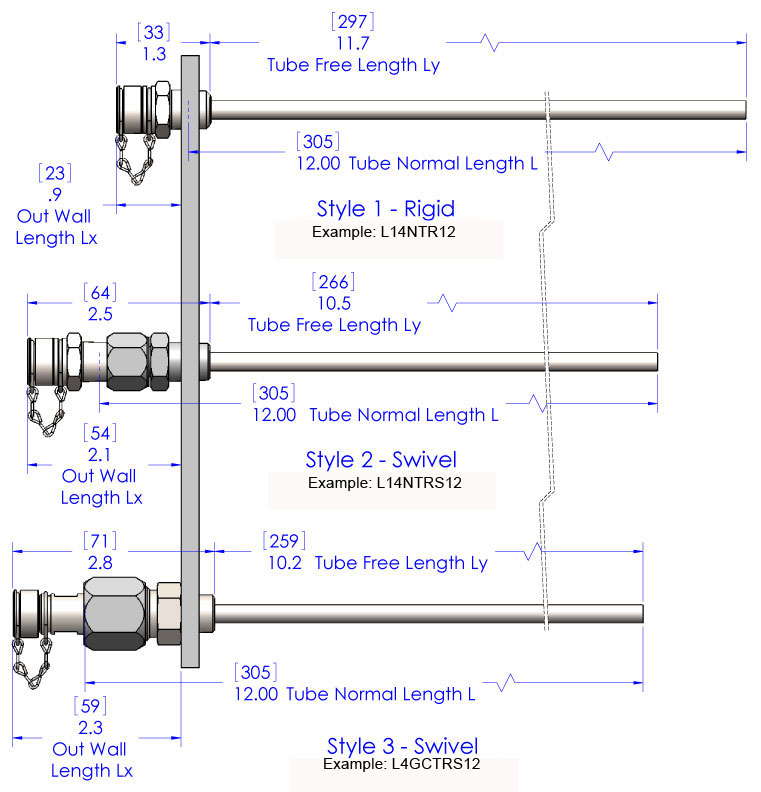

View Dimensional Data of the 3 Styles

Options

Plastic Tubing:

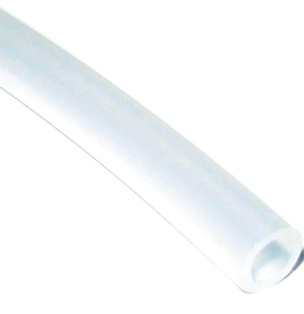

SER4: 1/4" LLDPE Tube (0.25" OD - 0.17" ID)

Probes

SLF4: Sample Probe with Barb for 1/4"OD Tube(SER4)
LF-4NF: Sample Probe1/4" Poly barb (SER4)
LF-Q4: Quick connect for 1/4" OD Tube (SER4)
LF-Q8: Quick Connect for 1/2" OD Tube (SER8)
SLF5: Sample Probe with Barb for 5/16" OD Tube(SNR5/SER5)
LF-Q5: Quick Connect for 5/16" OD Tube (SER5)

Accessories

VAC: Vacuum Pump 38 mm, w/ Dustcover & Zipbag & Stand

Applications
Product Support PDFS

LT Sampling Tube Product (PDF)

LT Sampling Tube Sampling Instructions (PDF)

Videos

LT Series Tube Extend Sampling

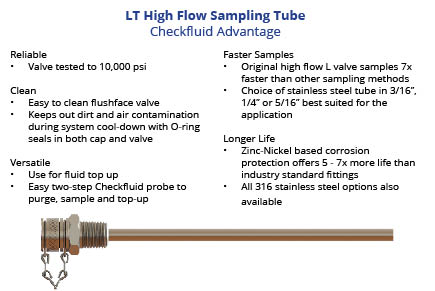

Overview
Order
NPTF - Steel - Rigid (TYPE 1)
NPTF - Stainless - Rigid (TYPE 1)
NPTF - Steel - Swivel (TYPE 2)
NPTF - Stainless - Swivel (TYPE 2)
BSPT - Steel - Rigid (TYPE 1)
BSPT - Stainless - Rigid (TYPE 1)
