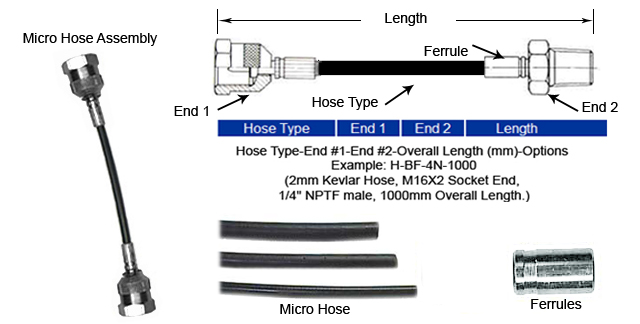

Micro Hose & Ferrules
Micro Hose & Ferrules
Features
  • Check pressures and oil sample away from machine and moving parts
  • Replace costly tube assemblies
  • Ideal for high pressure, low flow applications
  • Use pinpricked micro hose for high pressure gas or compressed air
  • Excellent flexibility, even under pressure
  • KEVLAR® fabric lined walls
  • Resistant to all mineral and synthetic oils
  • Resists weather fatigue and light
  • 50% reduction in outer diameter compared to standard hoses
  • Up to 75% weight savings due to lightweight construction
Specifications
Part Inside Diameter Outside Diameter Bend Radius Dynamic Pressure Static Pressure Burst Pressure
H/HP 2mm 4.9mm 20mm 7250psi 11600psi 27500psi
HP3 2.9mm 6.4mm 35mm 7250psi 11600psi 27500psi
HP4 4.1mm 8mm 40mm 6525psi 10440psi 27500psi



Micro Hose Materials

Component Value
Inner Hose Polyamid 12
Outer Cover Polyamid 12
Reinforcement Aramid Fibre
Temperature -60°C to 100°C



Micro Hose Temperature Pressure Reduction

Temperature Value
32°F (0°C) 122%
122°F (50°C) 100%
176°F (80°C) 86%
212°F (100°C) 77%



** Sampling and max. working pressures depends on the sampling valve pressure ratings

Options

Hoses vary in length and can be customized to suit your needs. Please contact us regarding your exact specifications.
