KST Series (Pressurized)
KST Series (Pressurized)

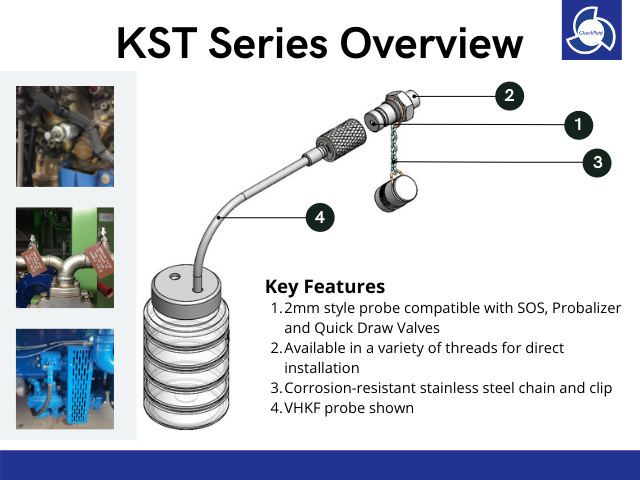

Features

- Reliable: Valve tested to 7800 psi (538 bar) for 1 million cycles
Patented elastomeric valve seals vacuum tight
- Popular mobile standard 2mm probe, compatible with SOS, Probalizer, and Quick Draw valves
- Offers a wide variety of disposable & reusable probes
- Dynamic sampling up to 4000 psi (276 bar) (probe dependent)
- Very low purge volume
- Higher flow for low pressure applications
- Environmentally friendly plating

Specifications

Sampling pressure: 5-4000 psi* (0.03 - 27.6 MPa)
Working pressure: 6000 psi (41.4 MPa)
Burst Pressure: 24000 psi (165.5 MPa)
Seal Material: Nitrile (Buna N), Viton (FKM), Neoprene (CR)
Valve Material: Carbon steel/Brass/Stainless Steel 316
Valve Plating: Zinc Nickel



*Note: sampling pressures greater than 750 psi require the VHKF sampling probe



See Detailed Specifications Chart for more information

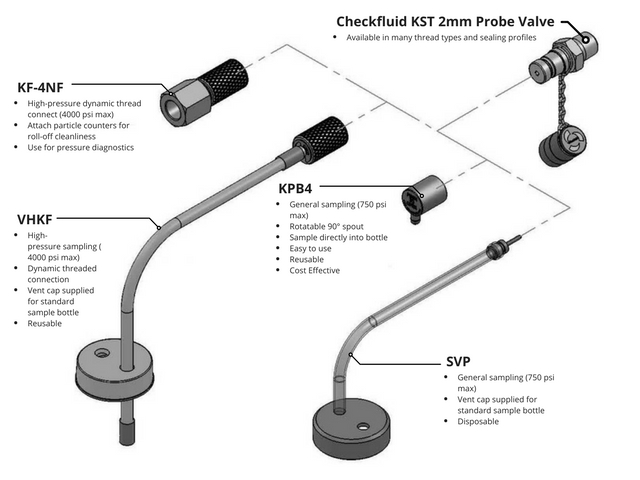

Probes

SVP: K Probe, Tube and Vent Cap, Disposable
KPB4: 90 Deg. Push on probe (1/4" Tube), Reusable
KPB6: 90 Deg. Push on probe (3/8" Tube), Reusable
VHKF: High Pressure Micro Hose, Vent, Reusable
SP: K Probe, Tube, Disposable

Applications
Product Support PDFS

KST Product Sheet (PDF)

Sampling Instructions: KST Series Probe Style (PDF)

Videos

KST Probe Style & KPB4 with zip bag (YouTube)
KST Probe Style & SVP with zip bag (YouTube)
KST Probe Style & VHKF with zip bag (YouTube)
KST Probe Style & KPB4 (YouTube)
KST Probe Style & SVP (YouTube)
KST Probe Style & VHKF (YouTube)

Overview
Order
American National Pipe Thread - NPTF - Steel
American National Pipe Thread - NPTF - Stainless
SAE Straight Thread O-Ring Boss - ORB - Steel
SAE Straight Thread O-Ring Boss - ORB - Stainless
O-Ring Face Seal - ORFS - Steel - Female
Metric - ISO 6149 - Steel
British Standard Pipe Parallel - BSPP - Steel
British Standard Pipe Taper - BSPT - Steel
Accessories/Probes
JIC Flare 37 - Steel - Female
